Tracing

Hayhooks tracing builds on Haystack tracing APIs and standard OpenTelemetry configuration.

Install

Install tracing extras first:

pip install "hayhooks[tracing]"

This installs the OpenTelemetry SDK, OTLP exporters, and FastAPI/Starlette instrumentors used by Hayhooks. Dashboard frontend source files are bundled in Hayhooks wheels for local runtime builds.

Quick Start (OTLP)

Set OpenTelemetry environment variables, then run Hayhooks:

export OTEL_SERVICE_NAME=hayhooks
export OTEL_EXPORTER_OTLP_ENDPOINT=http://localhost:4318
export OTEL_EXPORTER_OTLP_PROTOCOL=http/protobuf
export OTEL_TRACES_SAMPLER=parentbased_traceidratio
export OTEL_TRACES_SAMPLER_ARG=1.0
export HAYHOOKS_TRACING_EXCLUDED_SPANS='["send", "receive"]'

hayhooks run

Using OTEL_EXPORTER_OTLP_TRACES_ENDPOINT

If you set OTEL_EXPORTER_OTLP_TRACES_ENDPOINT directly for HTTP transport, use the full traces path (for example http://localhost:4318/v1/traces).

Local Backends

SigNoz

Start SigNoz locally:

git clone -b main https://github.com/SigNoz/signoz.git
cd signoz/deploy/docker
docker compose up -d --remove-orphans

Open SigNoz at http://localhost:8080, then go to Traces and filter by service hayhooks.

Jaeger

If you want a lighter single-container setup:

docker run --rm -d \
  --name jaeger \
  -e COLLECTOR_OTLP_ENABLED=true \
  -p 16686:16686 \
  -p 4318:4318 \
  jaegertracing/all-in-one:latest

Open Jaeger at http://localhost:16686 and use the same OTEL_* variables shown above.

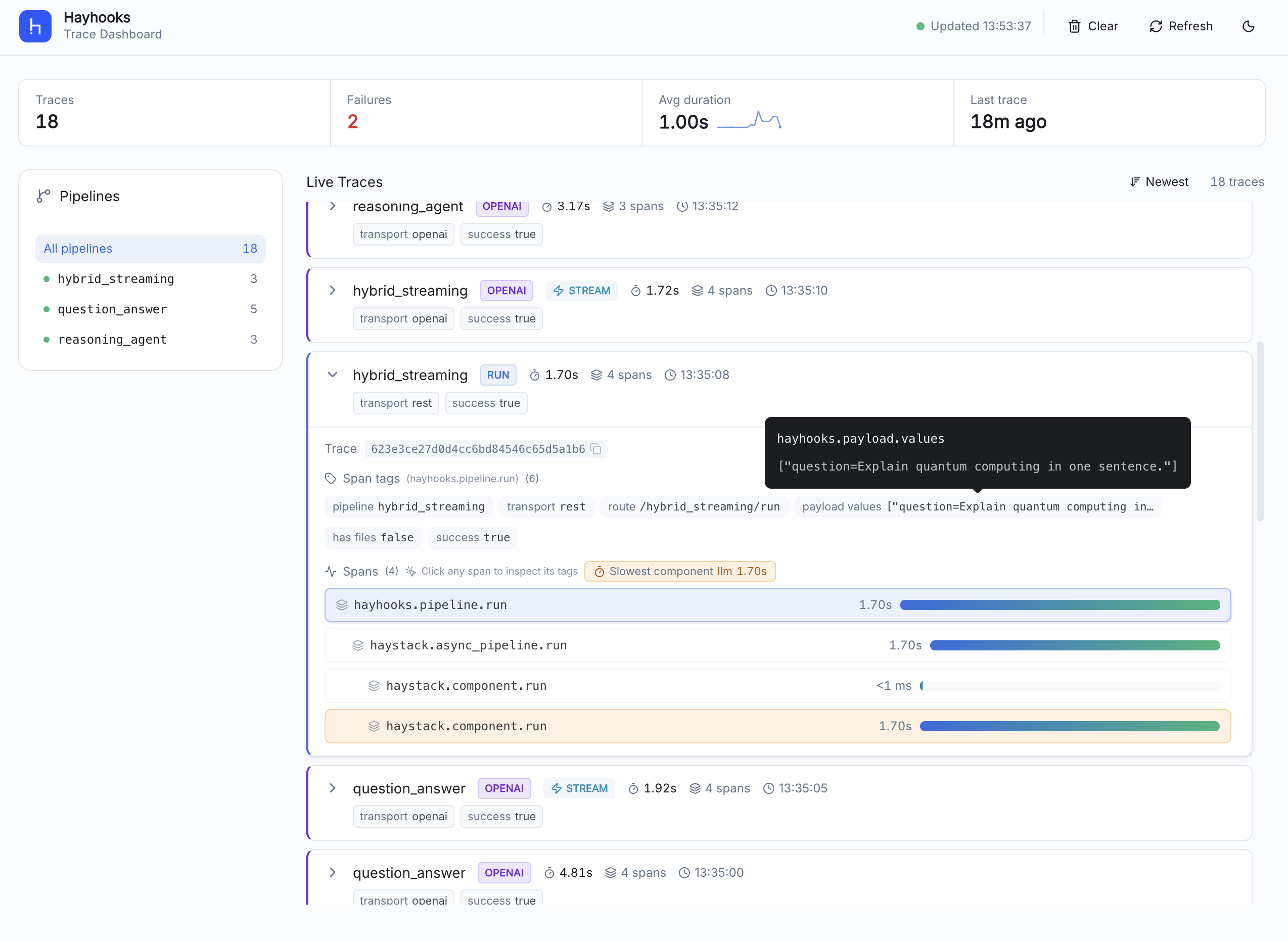

Live Dashboard

Hayhooks includes a built-in trace dashboard at /dashboard that provides real-time visibility into pipeline operations.

Features

• Live trace feed — auto-refreshes (default every 2.5s, configurable via HAYHOOKS_DASHBOARD_UI_POLL_MS) with new-trace animations.
• Pipeline filter — click a pipeline in the sidebar to filter traces; counts update per pipeline.
• Span waterfall — expand any trace to see nested spans with duration bars, per-span pipeline badges, and readable Haystack component labels on haystack.component.run spans.
• Slowest component signal — highlights only the single slowest component span per trace when its duration is above the configured threshold.
• Kind badges — each trace shows a kind badge (run, openai, deploy, undeploy, mcp) for at-a-glance classification.
• Streaming indicator — streaming requests get a visible STREAM badge beside the kind badge.
• Summary tags — collapsed cards show transport and success/error status; expanded view shows all tags with tooltips and a copyable trace ID.
• Error detail — failed traces display error type, message, and an expandable/copyable stack trace.
• Sort — toggle between newest-first and slowest-first ordering.
• Stats — pipeline trace count, failure count, average duration with sparkline, and last-trace time, all reflecting the active filter.
• Dark mode — toggle between light and dark themes via the header button.
• Clear traces — wipe the local trace buffer from the header.

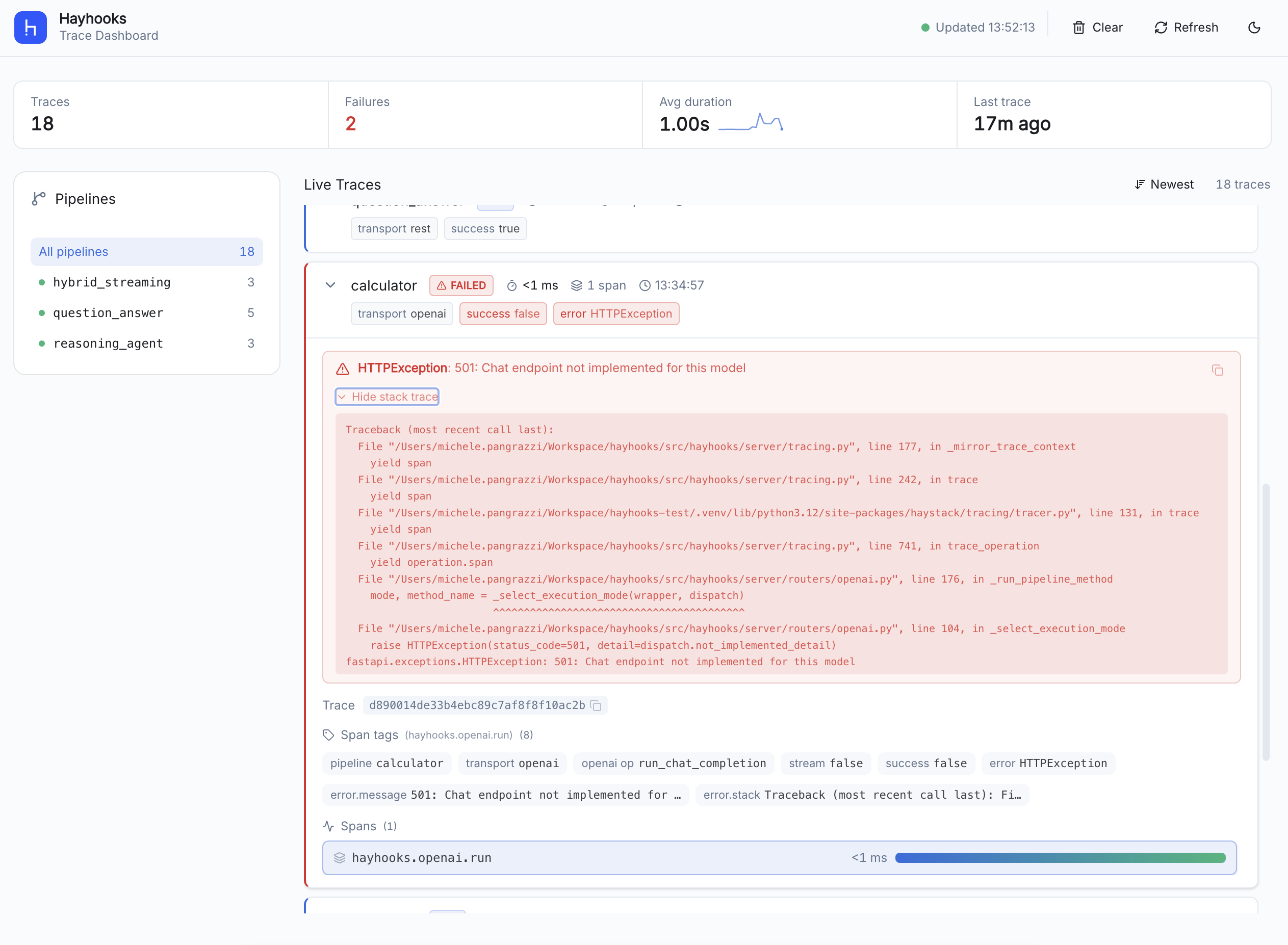

Error Traces

When a pipeline request fails, the dashboard highlights the affected trace with a red left border and a failed badge in place of the kind badge. Expand the trace to see:

• Error type and message — shown at the top of the detail area in the error block.
• Stack trace — expandable section with a copy button for sharing or debugging.

Setup

Enable and run the dashboard from CLI:

hayhooks run --with-tracing-dashboard

The --with-tracing-dashboard flag enables dashboard mounting and builds the frontend at runtime from the packaged dashboard source files.

To build the frontend at runtime, Node.js/npm must be available on the machine.

If you prefer configuring via environment variables instead of CLI flags:

export HAYHOOKS_DASHBOARD_ENABLED=true
cd dashboard
npm install
npm run build
export HAYHOOKS_DASHBOARD_DIST_DIR="$(pwd)/dist"
hayhooks run

For frontend-specific workflows (local Vite dev server, lint/test/build commands), see the dashboard frontend README.

Trace Source

The dashboard always reads traces from Hayhooks' in-process live trace buffer.

• No dashboard-side Jaeger/SigNoz fetching is used.
• No extra dashboard backend mode configuration is required.
• You can still export traces to external backends via standard OTEL_* variables for observability tooling, while the dashboard remains a local live view.
• The in-memory buffer is capped (default: 200 traces). Configure retention size with:

export HAYHOOKS_DASHBOARD_TRACE_BUFFER_CAPACITY=2000

Pipeline run traces include a hayhooks.payload.values tag. By default, this tag records payload shape metadata (question=str(24), top_k=int, filters=dict(3)) instead of raw payload values. To include raw values during trusted local debugging, opt in explicitly:

export HAYHOOKS_DASHBOARD_TRACE_INCLUDE_PAYLOAD_VALUES=true

Common sensitive keys such as api_key, token, authorization, password, secret, and credential remain redacted even when raw-value capture is enabled.

Dashboard with multiple workers

Dashboard traces are stored in each worker process memory. If you run Hayhooks with multiple workers (for example hayhooks run --workers 2), each worker keeps a separate trace buffer. The dashboard may show only a subset of traces, and POST /dashboard/api/traces/clear only clears the worker that served that request. For a consistent dashboard view, run with a single worker (--workers 1).

Dashboard Tuning

The dashboard UI behaviour is configurable via environment variables (HAYHOOKS_DASHBOARD_UI_*). All values are fetched by the frontend at page load from the /dashboard/api/config endpoint.

Variable	Default	Description
HAYHOOKS_DASHBOARD_UI_POLL_MS	2500	Polling interval (ms) between trace list refreshes
HAYHOOKS_DASHBOARD_UI_LIST_CAP	100	Max traces kept in the browser list
HAYHOOKS_DASHBOARD_UI_FETCH_LIMIT	50	Traces requested per poll
HAYHOOKS_DASHBOARD_UI_FRESH_MS	6000	Duration (ms) a new trace keeps the "NEW" highlight
HAYHOOKS_DASHBOARD_UI_SLOW_COMPONENT_MIN_DURATION_MS	1000	Threshold (ms) to flag the slowest component

For the full list of dashboard and tracing settings, see the environment variables reference.

Haystack component spans

By default, the dashboard includes both Hayhooks operation spans (deploy/run/openai/mcp lifecycle) and Haystack component spans in the same trace trees. To show only Hayhooks operation spans, disable:

export HAYHOOKS_DASHBOARD_TRACE_INCLUDE_HAYSTACK_SPANS=false

This feature flag only affects what gets mirrored into the dashboard buffer; it does not change dashboard UI filtering/sorting behavior. It also works without configuring an external tracing backend (local capture mode).

Run Hayhooks and open http://localhost:1416/dashboard.

A demo script is available to generate representative traces across multiple pipelines:

bash scripts/demo_dashboard_traces.sh

The script deploys example pipelines, fires REST and OpenAI-compatible streaming/non-streaming requests, then undeploys — producing a mix of trace kinds, success/failure states, and streaming indicators for exploring the dashboard UI.

API Endpoints

Endpoint	Method	Description
/dashboard/api/config	GET	Fetch dashboard UI polling/list settings
/dashboard/api/entrypoints	GET	List deployed pipeline names
/dashboard/api/traces	GET	Fetch recent traces (supports limit, since_ms, and after_seq query params)
/dashboard/api/traces/clear	POST	Clear the local trace buffer

GET /dashboard/api/traces returns:

• traces: normalized trace summaries for the requested page.
• next_after_seq: cursor value to pass as after_seq on the next incremental request.
• has_more: whether additional trace updates are available beyond the returned page.

The same cursor is also exposed in the X-Hayhooks-Trace-Cursor response header for clients that prefer header-based cursor handling.

Notes

• Hayhooks does not define a custom HAYHOOKS_OTEL_* exporter namespace. Use standard OpenTelemetry OTEL_* variables.
• HAYHOOKS_TRACING_EXCLUDED_SPANS is a Hayhooks-specific instrumentation tuning option for framework span noise.
• When OTEL_EXPORTER_OTLP_ENDPOINT (or OTEL_EXPORTER_OTLP_TRACES_ENDPOINT) is set, Hayhooks attempts automatic OTLP bootstrap at startup using OTEL_EXPORTER_OTLP_TRACES_PROTOCOL (fallback: OTEL_EXPORTER_OTLP_PROTOCOL, default http/protobuf).
• For advanced setups, you can initialize your own OpenTelemetry tracer provider before importing Hayhooks/Haystack.
